Specification:
|
product name
|

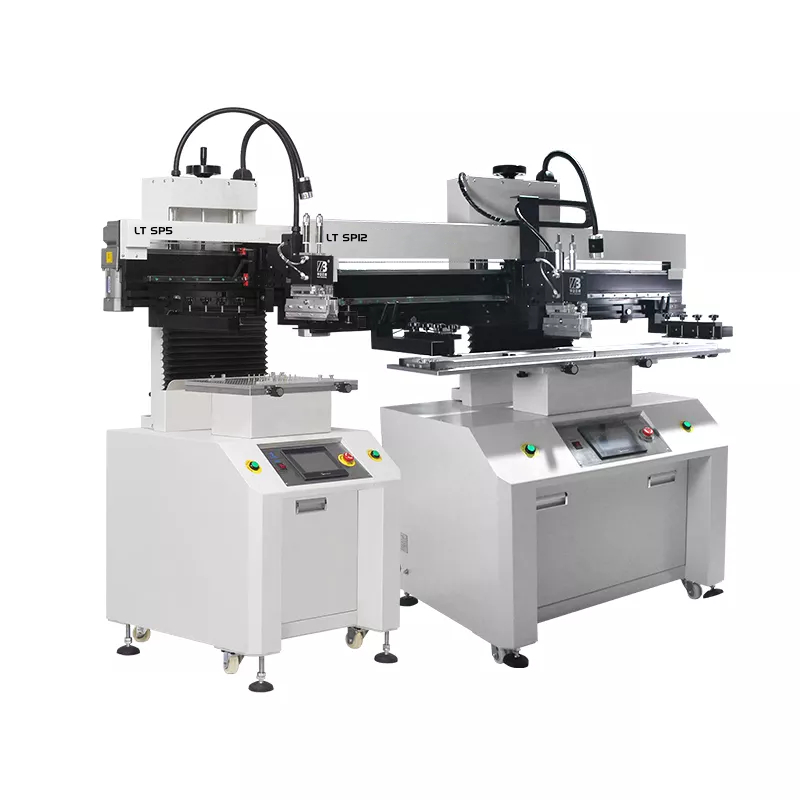

High precise semi-automatically solder tin printing machine
|
|||
|
model
|
LT-SP5
|

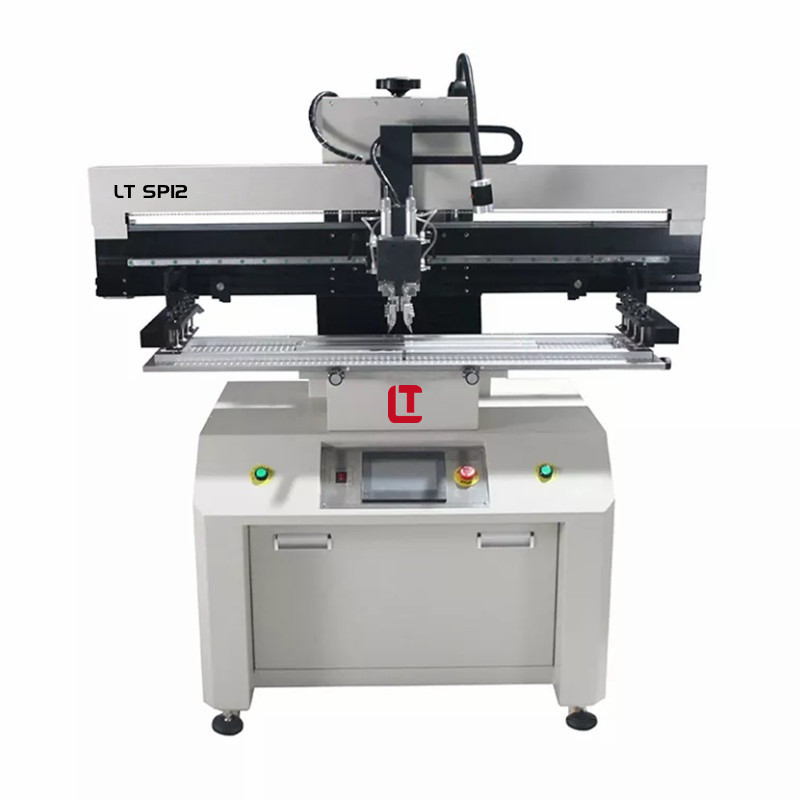

LT-SP12
|
||
|
printing table acreage
|
320*500mm
|
320*1250mm
|
||
|
frame size
|
370*470mm, 420*520mm, 550*650mm
|
370*470mm, 420*520mm, 550*650mm, 550*1550mm
|
||
|
substrate size
|
320*230mm
|
300*1230mm
|
||
|
substrate thickness
|
0.2-2.2mm
|
0.2-5.0mm
|
||
|
fixation of printing position
|
pcb outer or pin positioning
|
pcb outer or pin positioning
|
||
|
micro adjust of table board
|
front/back±10mm, F/L±10mm
|
front/back±10mm, F/L±10mm
|
||
|
printing precise
|
±0.02mm
|
±0.02mm
|
||
|
machine repeated accuracy
|
±0.05mm
|
±0.05mm
|
||
|
minimum spacing
|
0.25mm
|
0.35mm
|
||
|
using power supply
|
220v 50/60Hz 100w
|
220v 50/60Hz 100w
|
||
|

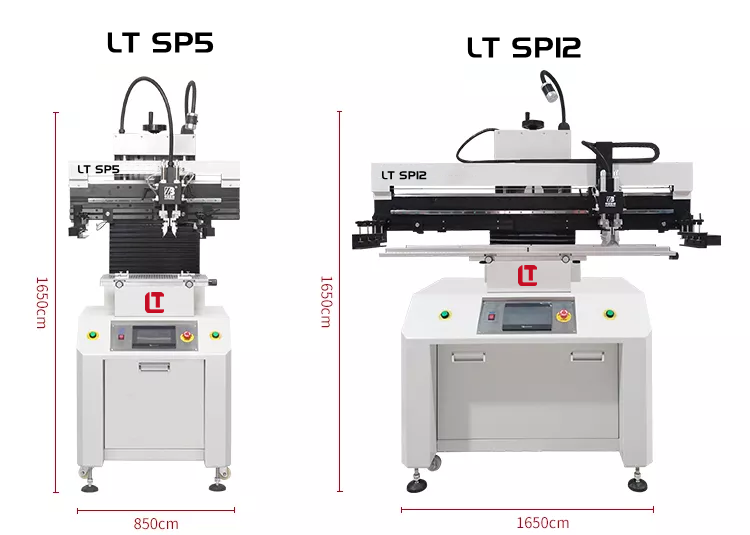

machine size
|
900*700*1650mm
|
1680*700*1650mm
|
||
|
outline packaging size
|
1100*850*2120mm
|
2200*850*2120mm
|
||
|
net weight
|
200kg
|
280kg
|
||
|
gross weight
|
250kg
|
350kg
|
||
